3.1 New Window Installation

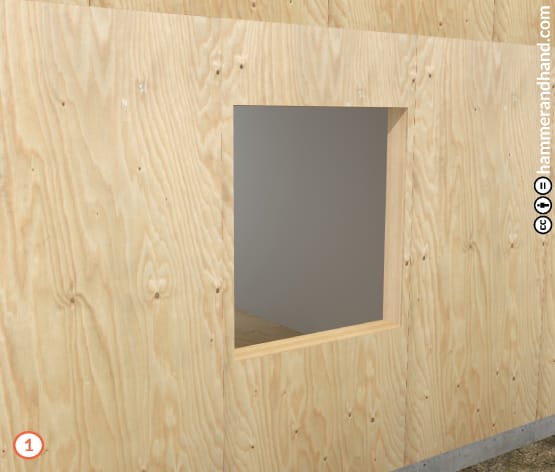

- Router or sand the rough opening (RO) to make clean edges for applying fluid flashing.
- Pass over outer edges with sand paper to get rid of any inconsistencies.
- ROs should be 1” larger than window dimensions, both width and height. If space requirements are not met, square or fix before continuing.
- Slope the sill using beveled siding or a wedge.

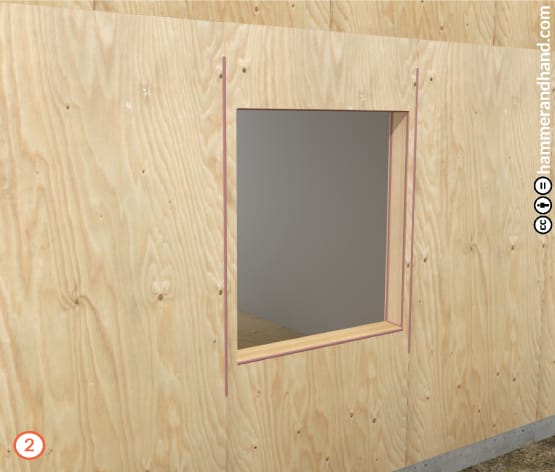

- Apply Joint & Seam Filler to all joints and voids larger than 1/4” that are to be covered in FastFlash.
- Ensure that all nails are set, apply pink Joint & Seam Filler and tool into place.

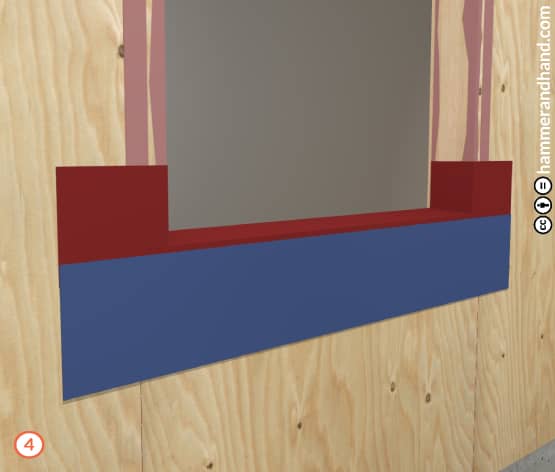

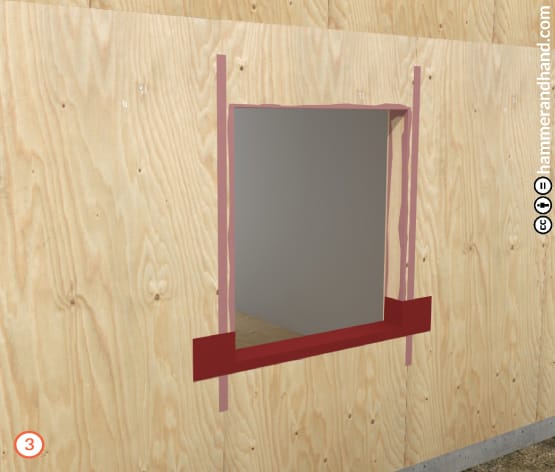

- Apply FastFlash to sill, extending 9” out from the RO to either side.
- Take care not to FastFlash too far below the RO because the transition strip will become embedded on contact and the water-resistive barrier (WRB) will not be able to slip underneath.
- Recommended: spread FastFlash 2” down from the bottom of the RO.
SureFlash Installation:
- Install transition sheet.
- Must extend down from sill at least 4” farther than FastFlash to adequately lap over WRB to be installed later.

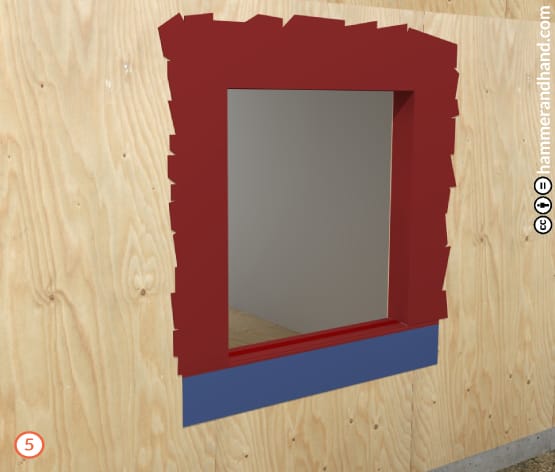

- FastFlash around the rest of the RO and tool over top edges of transition strip to avoid reverse lapping.

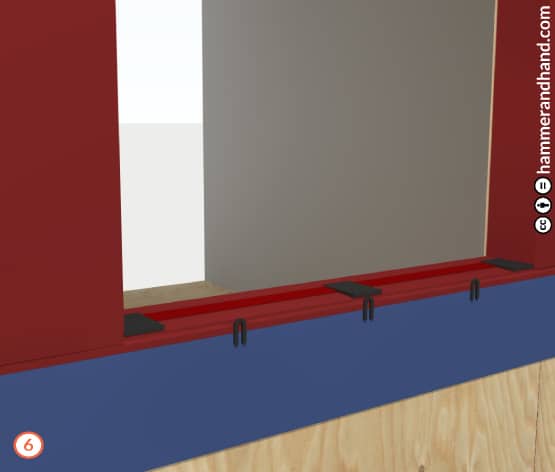

- Provide complete, level support for windows, where framing allows, by installing plastic or decay-resistant wood shims.
- Use horseshoe shims to hold window flange off of the sheathing so water can drain if the window fails.
- RECOMMENDED: 1/16 or 1/8” horseshoe shims.
- Insert window in RO and fasten according to manufacturer’s specifications.

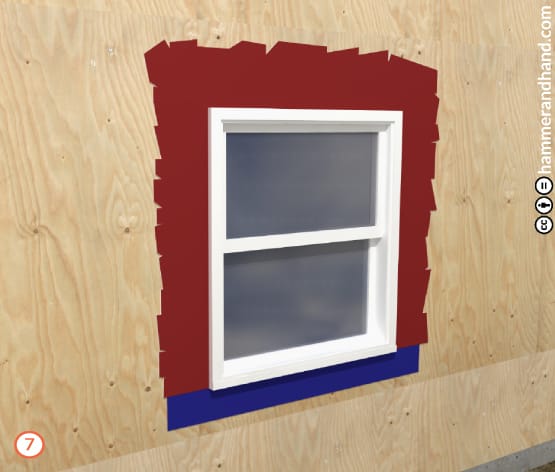

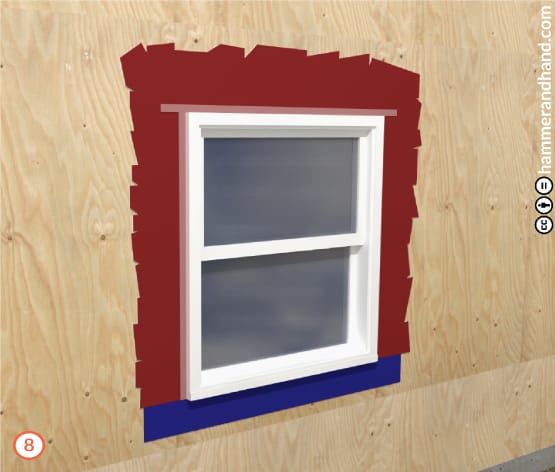

- Apply Joint & Seam Filler to head and side flanges and tool. For special cases where flanges must be taped for warranty purposes seek additional guidance for suitable alternative.
- NEVER seal the sill.

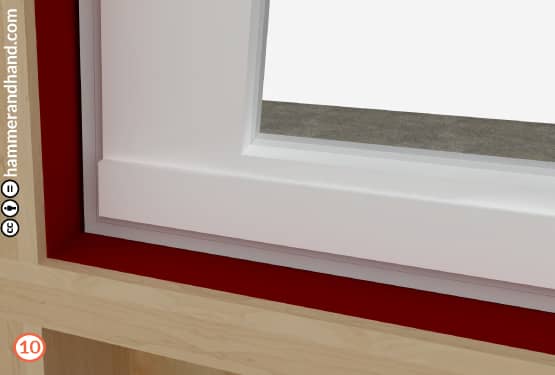

Interior View:
- Insert backer rod.
- Apply sealant on top of the backer rod and tool into place (see Sealant Joints section).

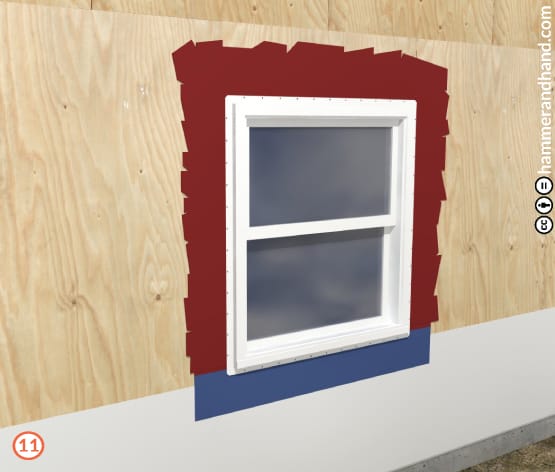

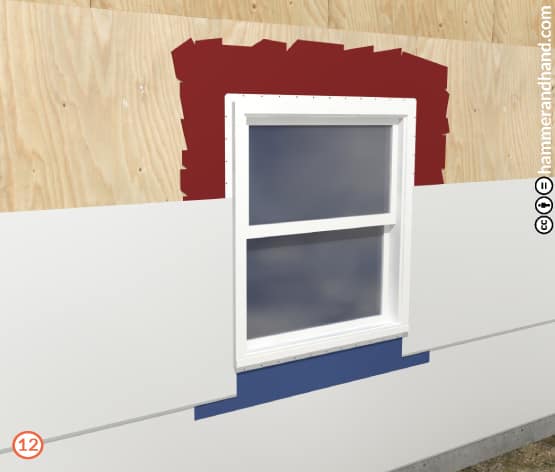

- Slide WRB under transition strip.
- Apply WRB around window.
- Complete WRB face, lapped.
- Make sure WRB is lapped over the built-in flashing at the top of the window and taped.
- Install trim.
Note: See alternate rain screen head flashing detail in section 4.2 Top of Window.
- Cut a slit in the WRB, fold up, and use tape to hold the flap out of the way while the head flashing is installed.

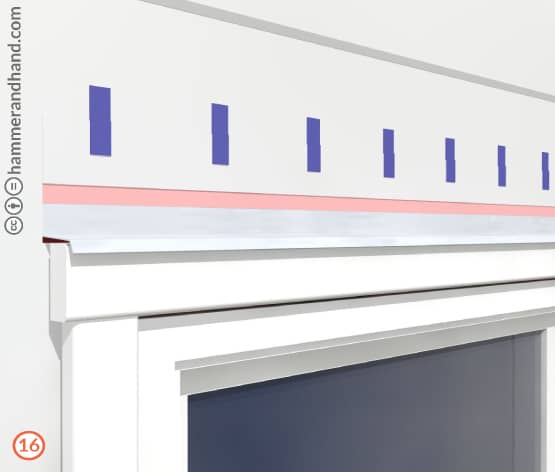

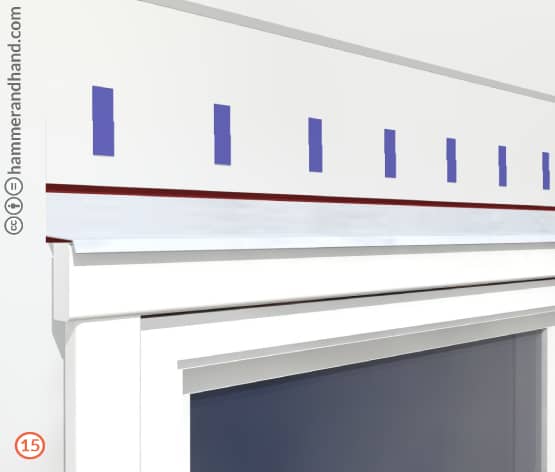

- Attach head flashing.

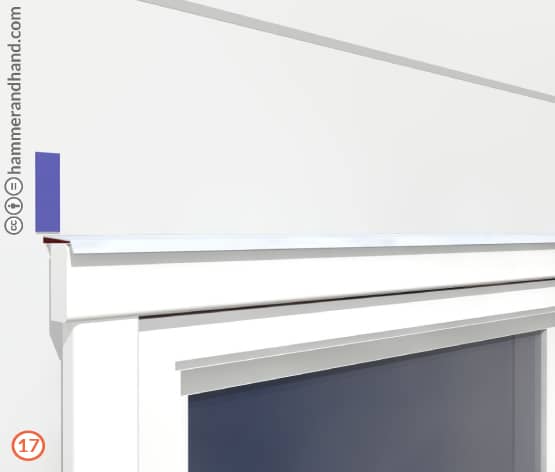

- Apply Joint & Seam Filler to the top of the back leg of the head flashing.
- Tool Join & Seam Filler into place.
- Fold WRB flap back down and tape the slit to prevent water intrusion.

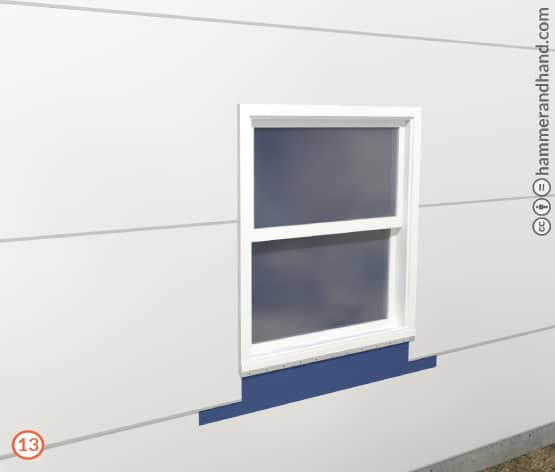

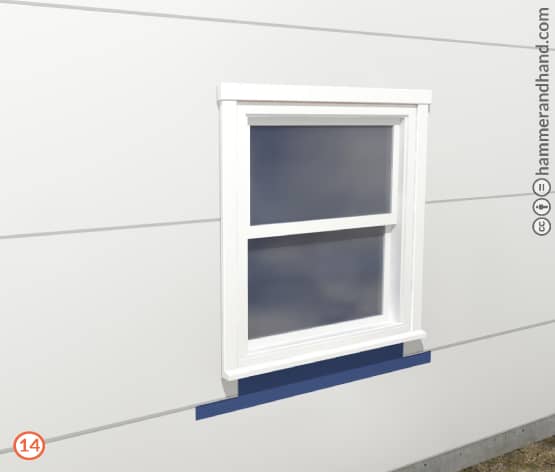

- Attach siding.

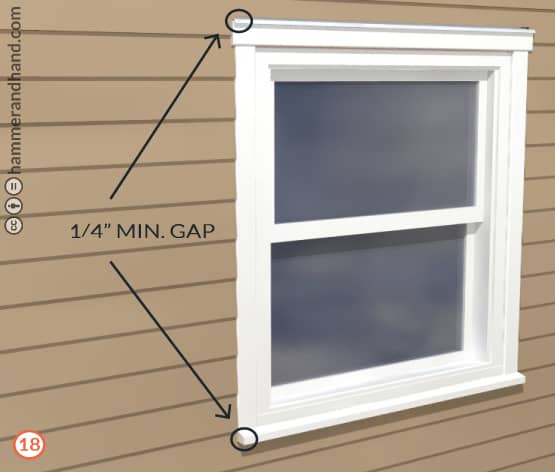

- There should be a 1/4” gap between the bottom of the sill trim and the siding underneath for expansion and contraction.
Continue to 3.2 Window Retrofit >>>
