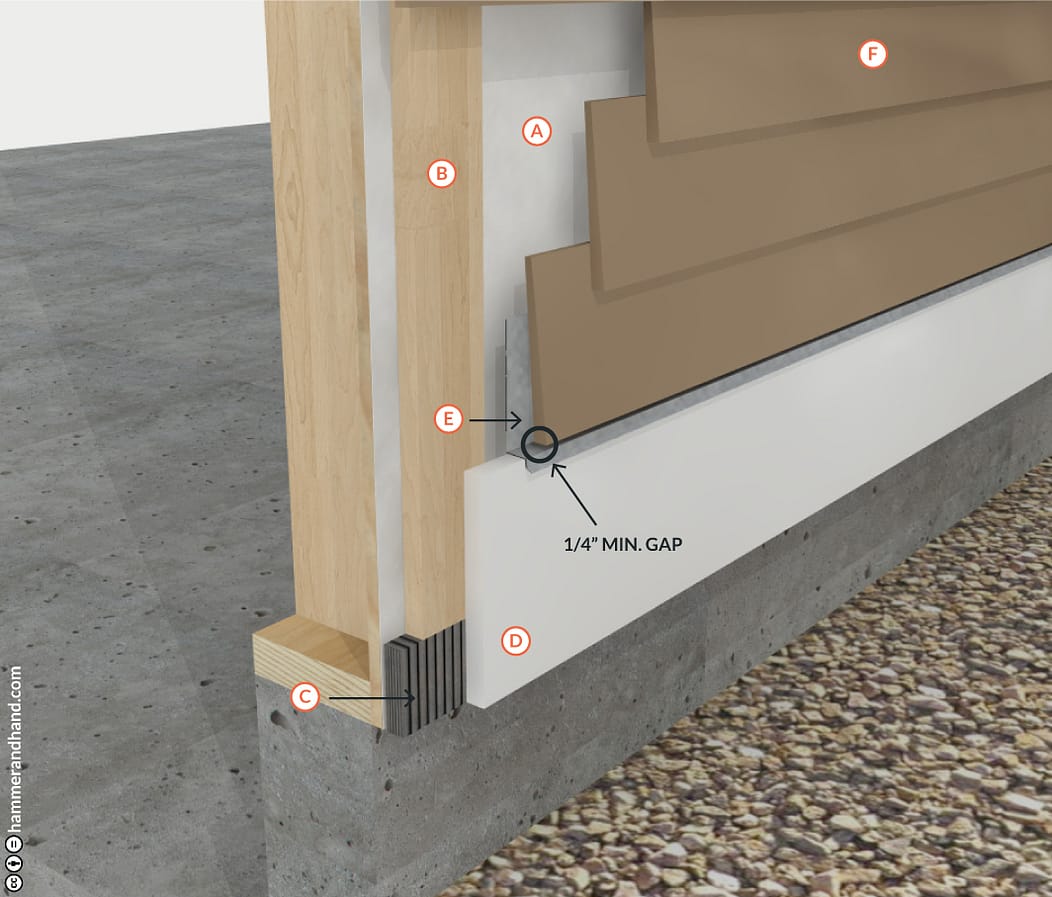

A. WRB (WATER-RESISTIVE BARRIER)
B. FURRING
C. COR-A-VENT SV-5
B. FURRING
C. COR-A-VENT SV-5
D. WATER TABLE
E. FLASHING
F. CLADDING
E. FLASHING
F. CLADDING

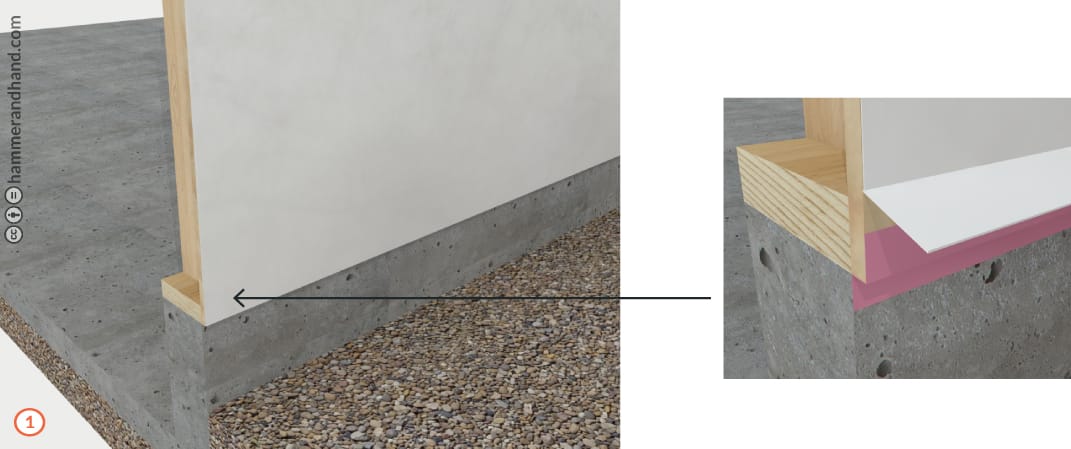

- Layer on WRB.
- Seal sheathing to stem wall with Joint & Seam filler.

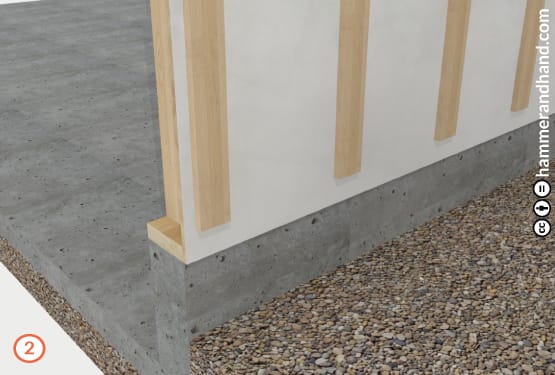

- Install vertical furring to correspond with the framing method (aligned with vertical framing members).
- Use untreated 1×4 furring.

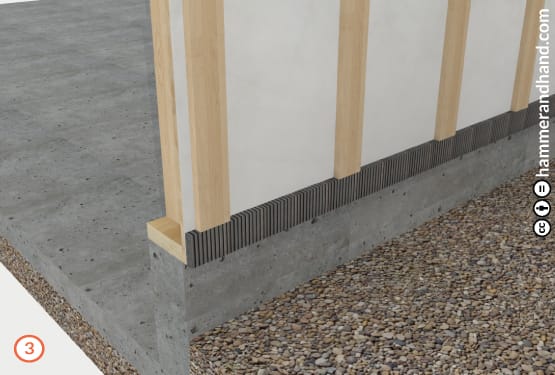

- Attach a continuous strip of Cor-A-Vent SV-5 insect blocker at bottom of furring.

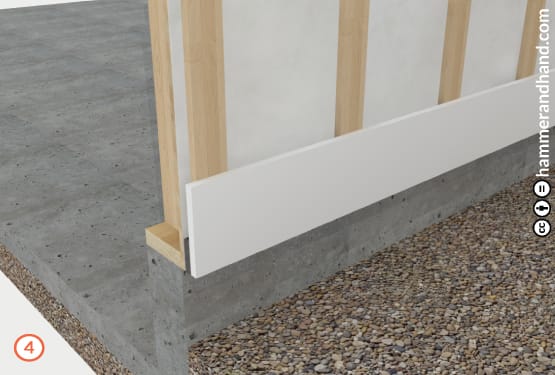

- Attach water table to furring.

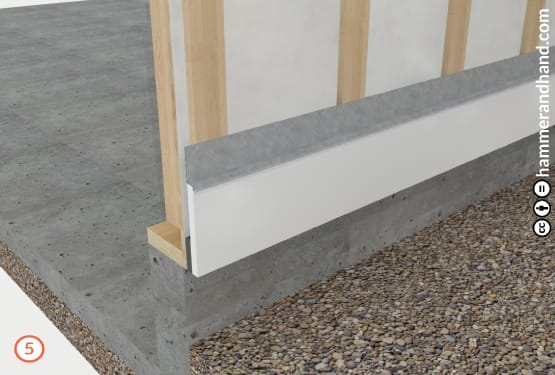

- Install flashing above water table.

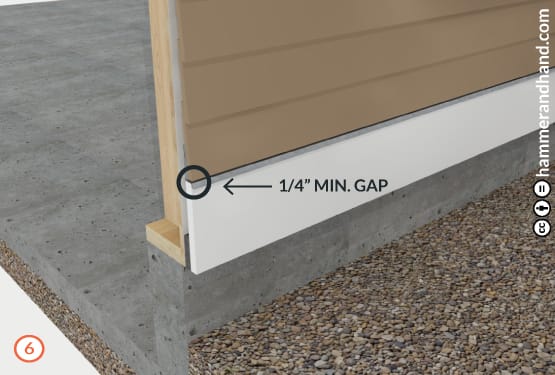

- Install siding to complete the rain screen.
