4.3 RAIN SCREENS: BOTTOM OF WINDOW

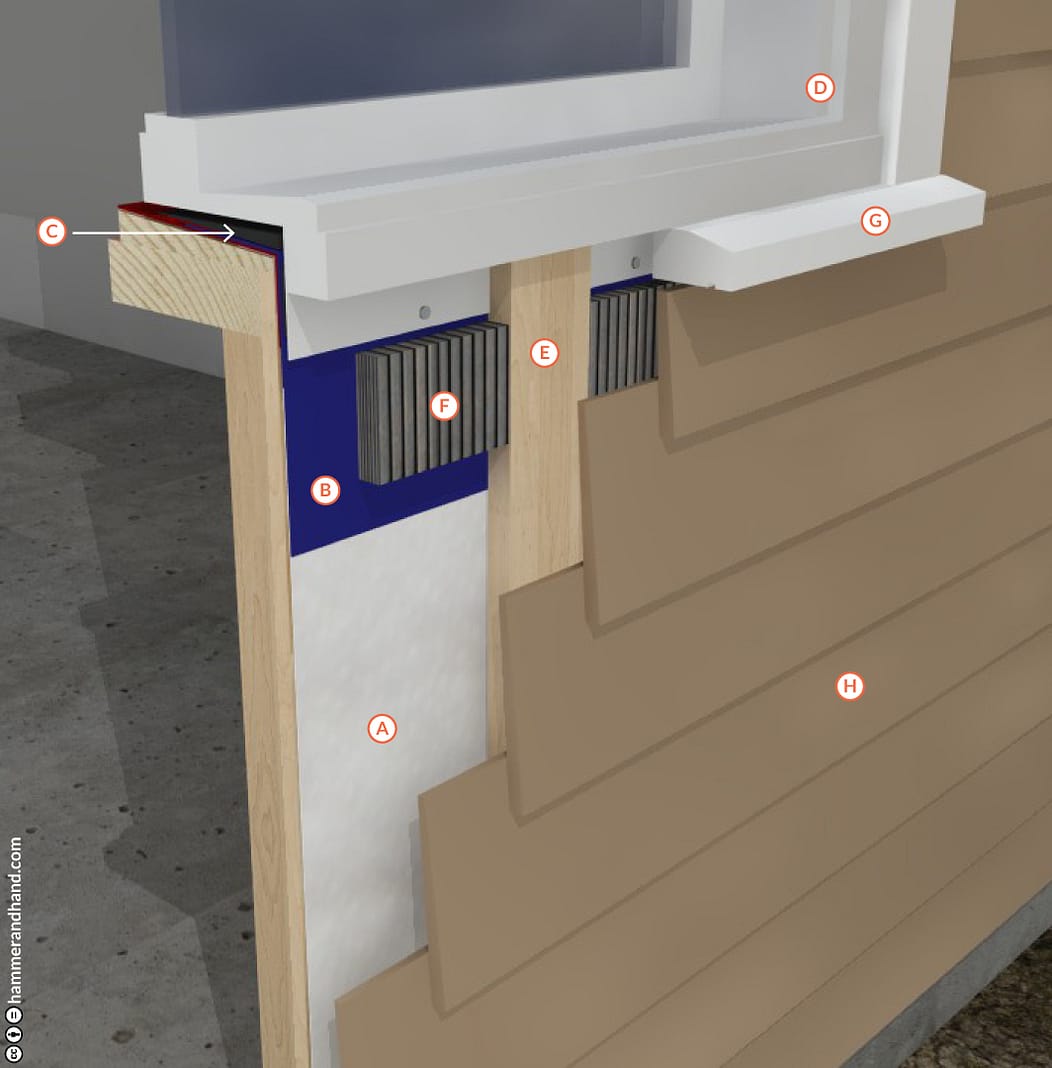

A. WRB (WATER-RESISTIVE BARRIER)
B. TRANSITION STRIP
C. SHIMS SUPPORTING WINDOW
D. INSTALLED WINDOW

E. FURRING
F. COR-A-VENT SV-5
G. TRIM
H. CLADDING

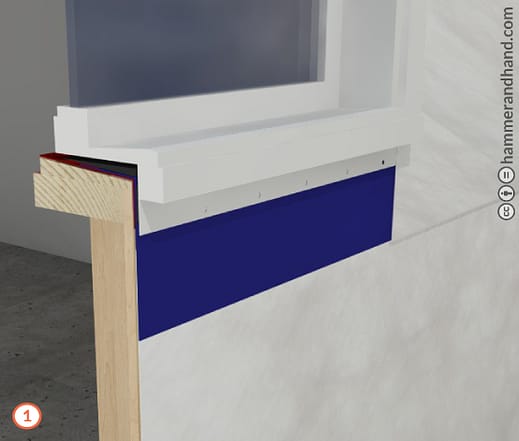

• Layer on WRB. Layer in a shingle method starting at the bottom and lapping top over bottom.

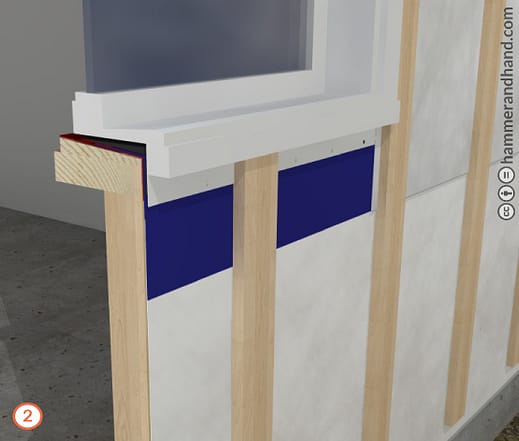

• Install vertical furring to correspond with the framing method (aligned with vertical framing members).
• Use untreated 1×4 furring.

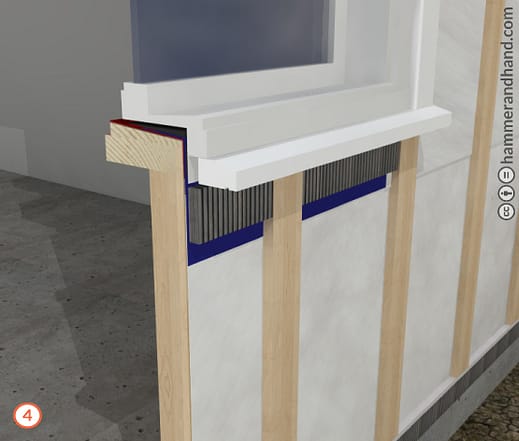

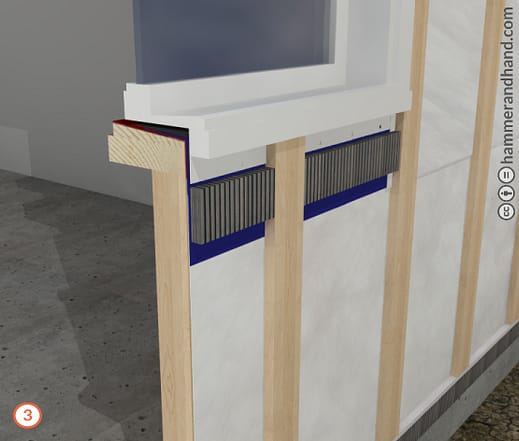

• Cut pieces of Cor-A-Vent SV-5 to fit flush in between furring below window.

• Attach trim.
• Can be nailed to furring.

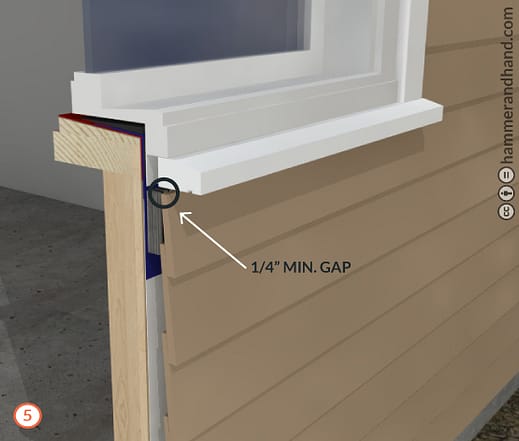

• Install siding to complete the rain screen.
